8HP70 8HP90 Flanged Output Yoke 8 Bolt Flange
$339.00
- Description
- Reviews (0)
Description

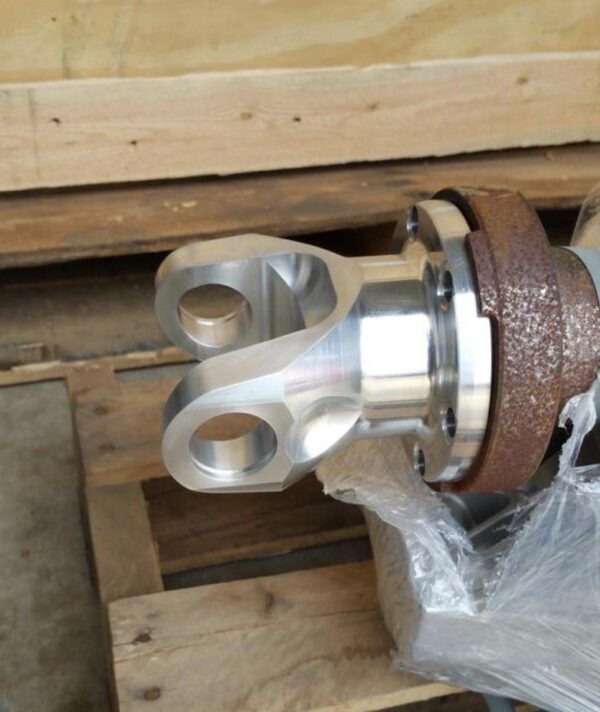

8-Bolt Adapter Flange Yoke
Part No. T35-ALFY-08
Fits ’15-later Dodge Hellcat; ’13-later Dodge SRT 392; Scat Pack Challenger and Chrysler 300.
The ideal upgrade for modified performance vehicles, Sonnax 8-bolt adapter flange yoke T35-ALFY-08 makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.
- Mates to differential pinion flanges in Hellcat® and similar high-power applications
- Eliminates the troublesome giubo (sometimes misspelled as guibo) and/or CV joint(s)
- Precision-machined for excellent fit and balance
flange yoke T35-ALFY-08 is a custom part and may fit more models than noted above. Measure flange OD, output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.
- U-Joint Series: 1350
- Pilot Type: M
- Material: 7075-T6 Aluminum
- Bolt Count: 8
- Flange Outer Dia.: 4.093″
- Flange Face to Centerline: 3.440″
- Weight: 1.490lbs
- Bolt Hole Dia.: 0.425″
- Pilot Dia.: 4.093″
- Bolt Circle Dia.: 88mm

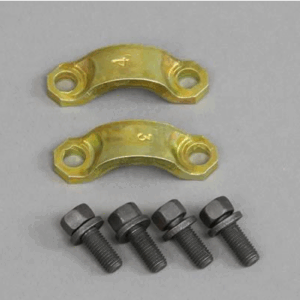

Use #68249371AB Attaching Bolts (requires 3) May require cutting length of bolts on some applications
